ARC Technology

Module

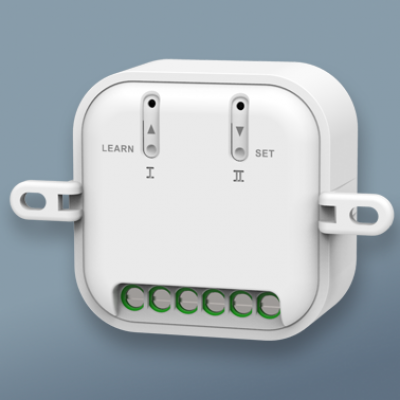

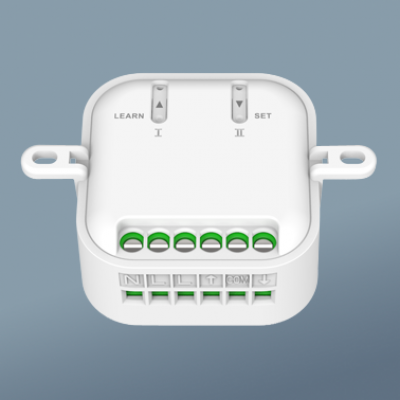

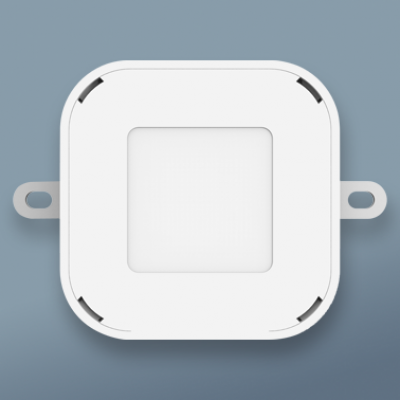

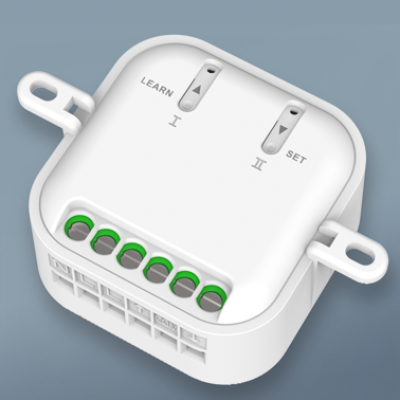

MJLR-2001

Shutter Blind Moudle Receiver. From shutters to pavilions, motorized electronics and furnishing are part of a modern home. Now they can be part of your connected home. 1000W x 2 Resistive load, controlling up / down / stop.

Used with remote control MJLT-2005. Built-it motor calibration setting. 32 memories, first in first out storage maintain. Scene status memory, create your desired atmosphere.

Input Rating: 230V~50Hz Output Rating: 1000W x 2 Resistive Load. Radio Frequency: 433.92MHz Power Consumption: <1W Environment Temperature: 0-40 ºC Range: Up to 50 Meter range (Depends on building materials)
