ARC Technology

Module

MWMR-2300

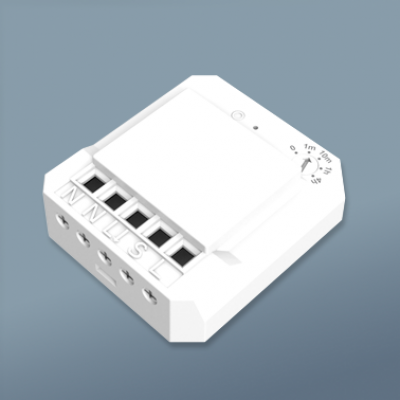

Powerful 2300W mini wall switch module receiver with adaptive mains zero crossing switching.

Compatible to L and M series. 2-way switching. 4 Delay timer function – 1m, 10m, 1H, 4H. 32 memories, first in first out storage maintain. Scene status memory, create your desired atmosphere. Fits into standard wall box or inside light fittings.

Input Rating: 230V~50Hz Output Rating: 2300W Resistive Load. Radio Frequency: 433.92MHz Power Consumption: <1W Environment Temperature: 0-40 ºC Range: Up to 50 Meter range (Depends on building materials).
